Durable aluminium angle profile for edge protection, designed to protect exposed stair and structural edges from everyday wear and impact. Profile 33225 measures 43 × 23 mm, features countersunk fixing holes for secure mechanical installation, and is available in multiple anodized and polished finishes.
The 33225 Aluminium Edge Protection Profile is a simple and durable angle profile designed to protect exposed edges against wear and mechanical damage.

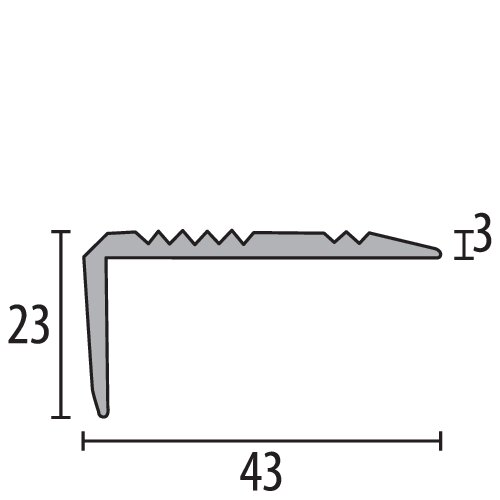

With dimensions of 43 mm wide × 23 mm high, the L-shaped profile covers both the horizontal surface and vertical edge. The technical drawing on the manufacturer's datasheet shows a compact angle construction with a textured/ribbed upper surface and countersunk mechanical fixing.
The manufacturer specifies edge protection as the intended application. Unlike many of the stair nosings in our range, Profile 33225 does not use a separate PVC or abrasive insert, resulting in a simple all-metal construction.
The profile is available in 1.0 m, 2.5 m, 3.0 m and 5.0 m lengths, providing flexibility for individual steps as well as larger installations. It is mechanically installed using countersunk fixing holes designed for Ø3.5 mm screws.
|
Technical specifications |
|
|---|---|
|
Product type |
Edge Protection / Angle Profile |
|
Material |
Aluminium, brass |
|
Alloy |
EN AW-6060 / MS58 |
|
Profile width |
43 mm |
|
Profile height |
23 mm |
|
Profile length |
2500 mm |
|
Fire classification |
A1 - non-combustible |
|
Application |
Indoor |
|
Finish |
Silver F4, Brass F7 |
Call us now or fill the contact form below and we´ll get back to you as soon as possible.
Material
| Material | Aluminium, Brass |
|---|
Installation method
| Installation method | Screw fixing / adhesive, Self-adhesive |
|---|
In stock
| Material | Aluminium, Brass, Stainless-steel 304, Stainless-steel 316 |
|---|---|
| Size | 35×280×5 mmCommonly used outdoors, customAll products are fully customizable in size, contact us for more details. |
| Installation method | By glue (no pin), Drilling (with pin), Screw opening, Self-adhesive (3M VHB 5925) |
| Anti-slip rating | R11 (casted), R13 (CNC machined) |
| Surface treatment | Black PVDNote: Black PVD surface treatment is only applicable on stainless-steel material. Special surface treatments such as sandblasting, Black & Gold PVD, patination and anodization are available on selected materials with MOQ. Contact us for more details. , Standard finish |
| Production lead time | 2-4 weeks |
