Aluminium stair nosing designed for integrated indirect LED lighting, combining illuminated stair-edge definition with anti-slip grooves on the tread surface. The 60 × 45 mm profile is designed for indoor stairs and podiums and is available in multiple anodized finishes or custom RAL powder-coated colours.
Ideal for architectural, commercial and interior projects where stair safety and integrated lighting are required.
The 33890 Aluminium LED Stair Nosing Profile combines stair-edge protection, integrated indirect lighting and a grooved walking surface within a single architectural profile.

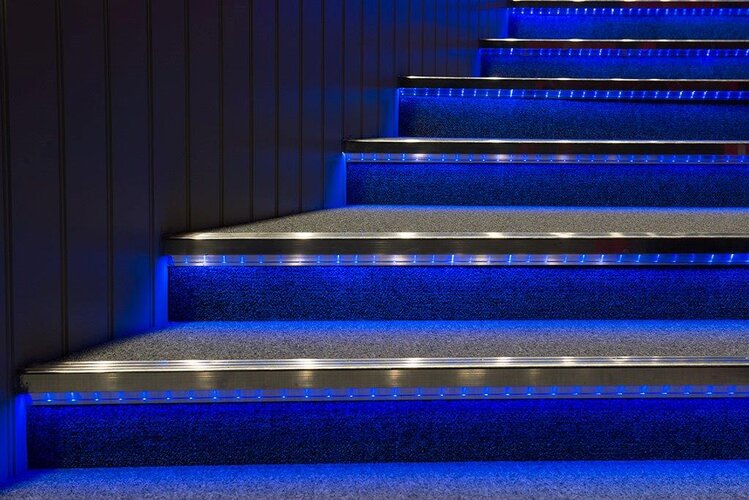

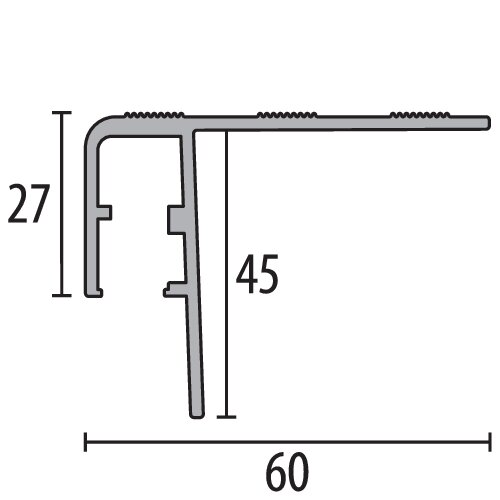

Manufactured from EN AW-6060 aluminium, the profile measures 60 mm wide × 45 mm high and incorporates a dedicated channel for the installation of an LED lighting system. The profile directs the LED light downward from the front of the stair edge, creating indirect illumination rather than exposing the LED strip directly.
The upper surface incorporates anti-slip grooves, providing additional surface texture at the stair edge. The profile is countersunk drilled and designed primarily for mechanical screw fixing.
Küberit specifies Profile 890 for stairs and podiums inside buildings, with the associated flooring intended to be fully bonded. Compatible LED accessories are offered separately by the manufacturer.
In addition to standard anodized finishes, Profile 33890 can be manufactured with custom RAL powder coating in matt, semi-matt or high-gloss finishes, subject to minimum quantities and technical feasibility.
|
Technical specifications |
|
|---|---|
|
Product type |
Aluminium stair nosing |
|
Material |
Aluminium |
|
Aluminium alloy |
EN AW-6060 |
|
Profile width |
60 mm |
|
Profile height |
45 mm |
|
Profile length |
3000 mm |
|
Fire classification |
A1 - non-combustible |
|
Application |
Indoor |
|
Finish |
Silver F4 |
Typical applications can include:
Call us now or fill the contact form below and we´ll get back to you as soon as possible.
Material
| Material | Aluminium |
|---|
Installation method
| Installation method | Screw fixing / adhesive |
|---|
In stock
| Material | Aluminium, Brass, Stainless-steel 304, Stainless-steel 316 |
|---|---|
| Size | 35×280×5 mmCommonly used outdoors, customAll products are fully customizable in size, contact us for more details. |
| Installation method | By glue (no pin), Drilling (with pin), Screw opening, Self-adhesive (3M VHB 5925) |
| Anti-slip rating | R11 (casted), R13 (CNC machined) |
| Surface treatment | Black PVDNote: Black PVD surface treatment is only applicable on stainless-steel material. Special surface treatments such as sandblasting, Black & Gold PVD, patination and anodization are available on selected materials with MOQ. Contact us for more details. , Standard finish |
| Production lead time | 2-4 weeks |
